Description

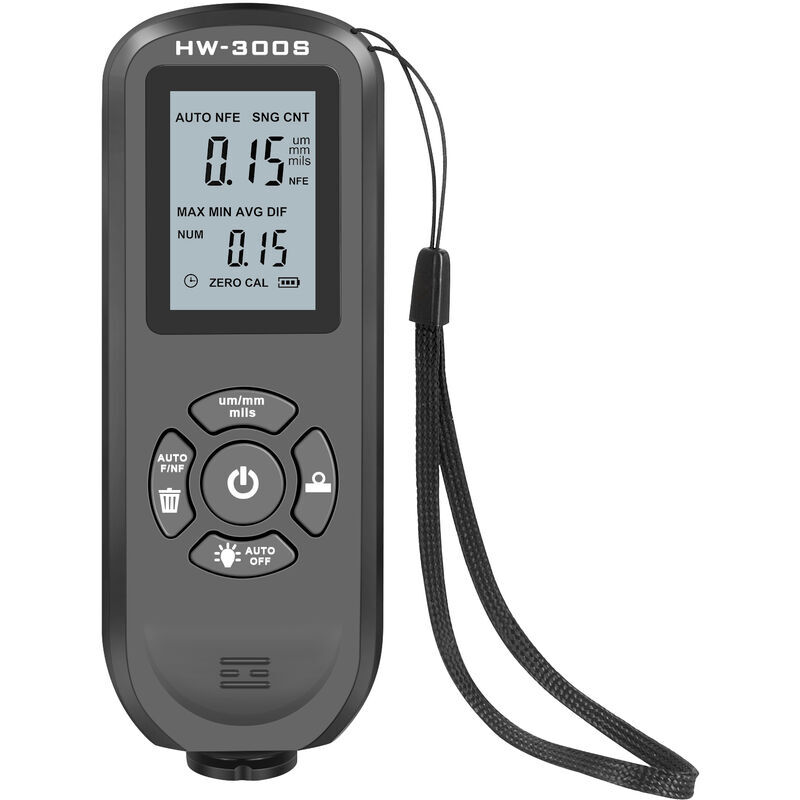

General description This Auto Paint Tester Coating Thickness Gauge features built-in magnetic induction and a dual vortex principle probe, allowing it to automatically identify the measured metal substrate. Simply place it on the surface to calculate the coating thickness. It is designed for measuring the thickness of non-metallic coatings, such as paint and film, on metal substrates quickly, non-destructively, and accurately. The device is particularly useful for assessing vehicle surface paint and other coatings. Technical specifications Material: ABS Color: Orange, Black (optional) Screen Orientation: Horizontal, Vertical (optional) Measuring Range: 0 ~ 2000um Accuracy: (3%+1um) Resolution: 0um ~ 99.9um (0.1um), 100um ~ 999um (1um), > 1000um (0.01mm) Zero Calibration: Supported Statistics: Average, Minimum, Maximum, Count Units: um, mm, mils Minimum Convex Radian: 5mm Minimum Concave Radian: 25mm Minimum Measured Area: Diameter 20mm Minimum Substrate Thickness: 0.2mm Maximum
